Packard Titan HD heavy-duty dual-run capacitor 45+5µF 440/370V — round replacement for HVAC motors

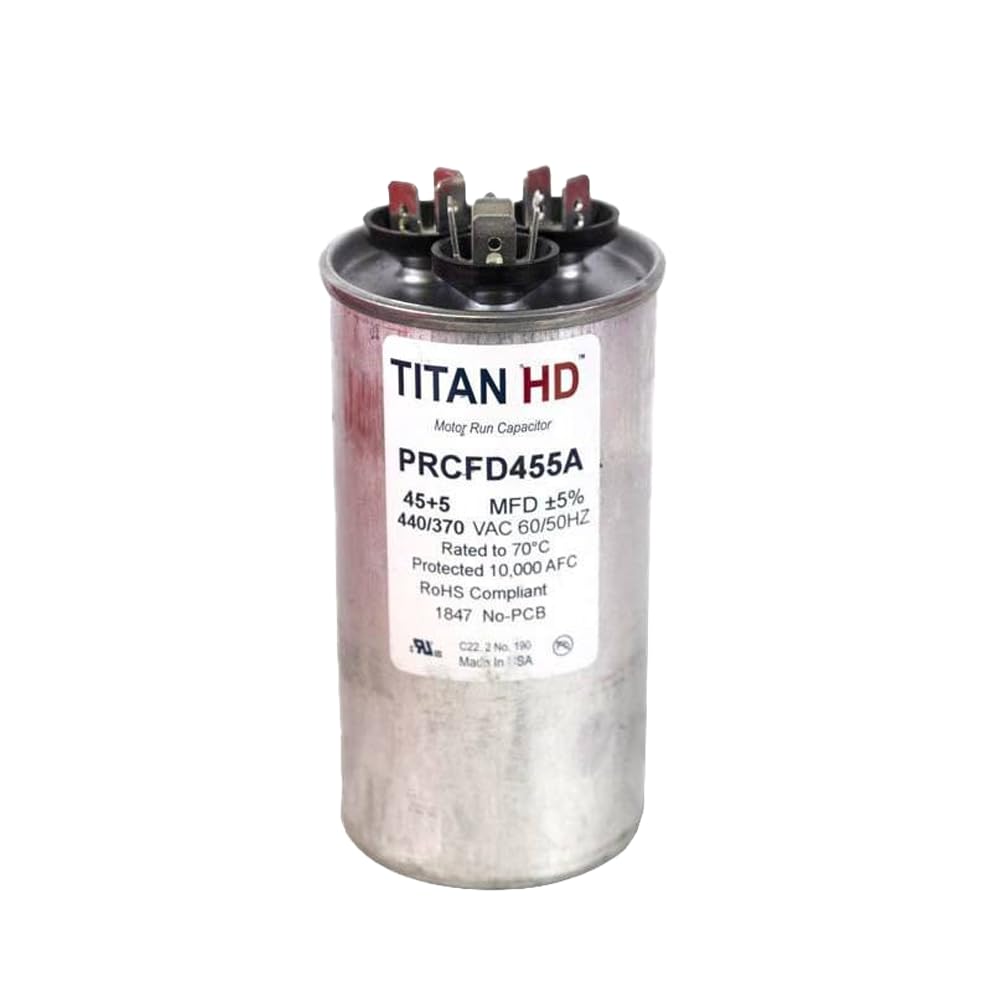

Packard Titan HD 45+5MFD (440/370V) is a heavy-duty round dual-run capacitor designed to supply steady starting and running power to single-phase HVAC motors and compressors.

This dual capacitor pairs a 45µF run section with a 5µF auxiliary section in a compact round housing rated for 440/370 volts. Built for replacement and retrofit applications, the Titan HD uses industrial-grade components and a standardized terminal layout so electricians and HVAC technicians can quickly swap it into air handlers, condensing units and other refrigeration or motor-driven equipment. The unit’s voltage rating and dual-value configuration make it suitable where a single enclosure must serve both fan/condensate motor and start-assist functions.

What electrical specifications should I check before replacing a capacitor?

Match the microfarad (µF) values, voltage rating and terminal arrangement to the original capacitor to ensure compatibility and safe operation. Verify the equipment’s service manual or the old capacitor nameplate to confirm ratings and wiring orientation.

• Capacitance: 45µF (run) + 5µF (start/auxiliary)
• Voltage rating: 440/370V (suitable for high-voltage systems)

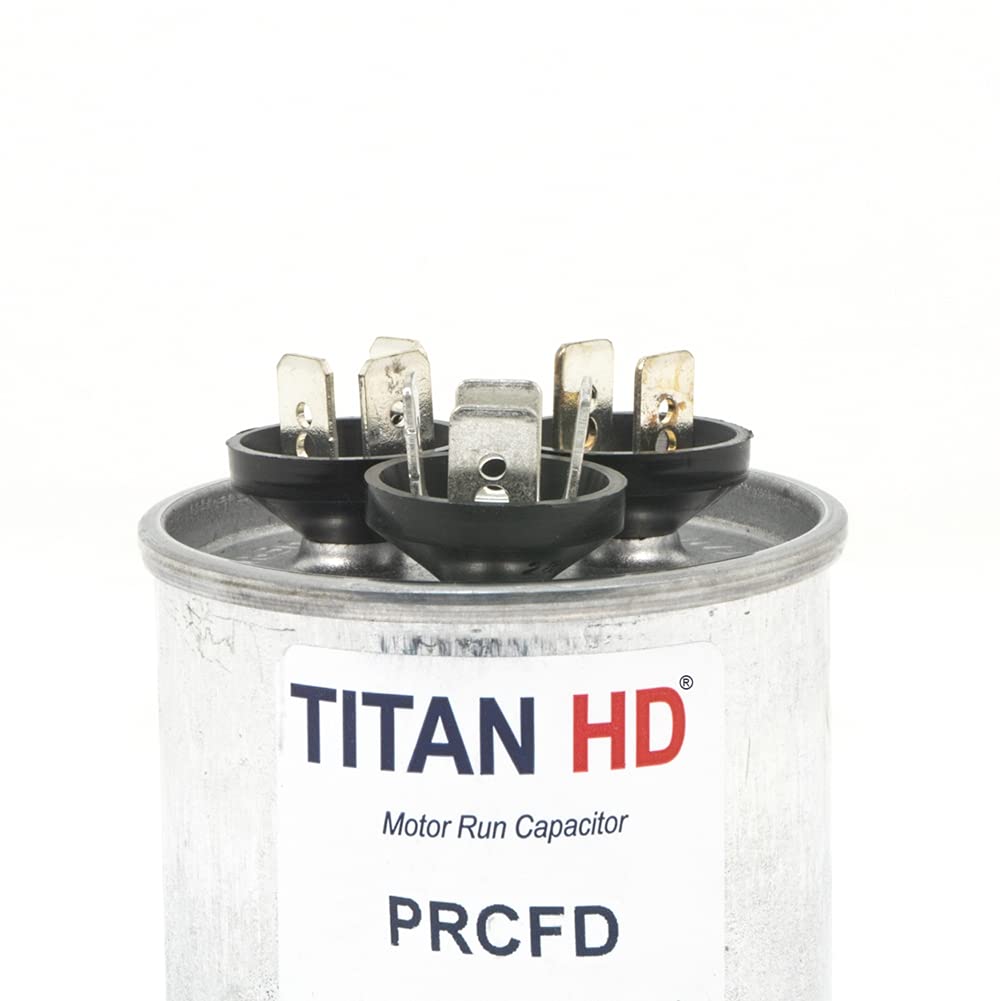

• Terminal layout: standard round-cap dual terminals for easy replacement
• Physical fit: round housing size and mounting bracket compatibility

How does this dual capacitor help HVAC performance and reliability?

A correctly sized dual-run capacitor stabilizes motor torque and improves starting consistency for compressors and fan motors. Using a single, matched unit for both run and auxiliary circuits reduces the chance of mismatched components and simplifies maintenance.

• Provides consistent reactive power for better motor operation
• Reduces risk of overworking compressors and fan motors during start
• Simplifies inventory with one combined device instead of two separate capacitors
• Designed for industrial-grade duty cycles and environmental stress

How do you install the Titan HD safely and correctly?

Turn off all power and discharge the old capacitor before touching terminals. Replace with the Titan HD by matching the labeled terminals (45, 5, common) and secure the housing; if you’re not comfortable, hire a licensed technician to execute the swap.

• Always isolate power and use insulated tools
• Discharge stored charge on old capacitor safely before removal

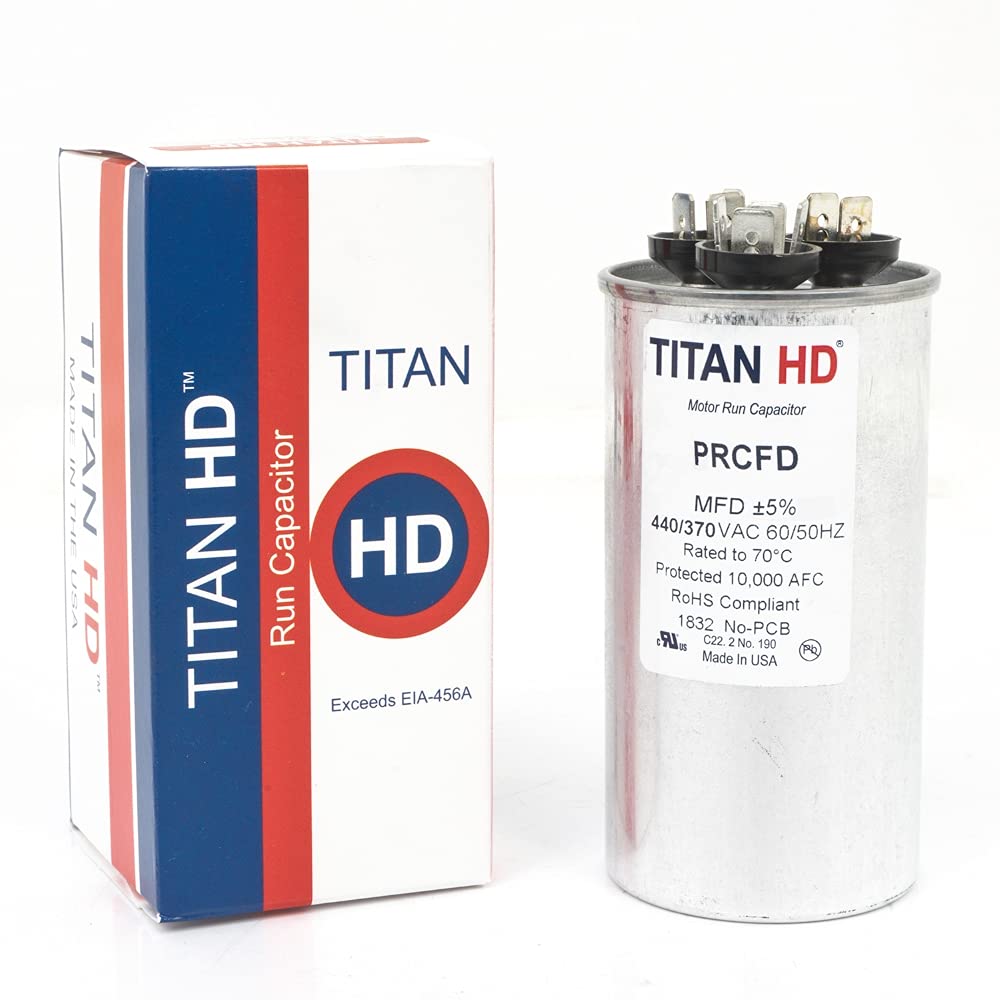

• Connect terminals per nameplate: C (common), FAN/45, Herm/5 (or equivalent labeling)
• Verify mounting and clearances for heat and vibration

What maintenance and lifetime expectations come with this capacitor?

Capacitors wear gradually from heat, voltage stress and cycling; visual inspection and periodic capacitance checks help predict end-of-life. Expect longer service when installed in dry, well-ventilated locations and when oversized slightly for voltage stress margins.

• Inspect annually for bulging, leakage or terminal corrosion
• Test capacitance with a meter during preventative maintenance
• Replace if measured capacitance deviates more than manufacturer tolerance
• Store and install away from excessive heat sources for longevity

Who is this for? The Packard Titan HD 45+5MFD 440/370V round capacitor is aimed at HVAC professionals, technicians and informed DIYers who need a robust, drop-in dual capacitor for residential and light-commercial systems. It suits situations where a single enclosure must handle both run and start/auxiliary duties, where matching original specs is critical, and where durability under frequent cycling is required. If you manage equipment inventories, perform routine maintenance, or retrofit older units, this Titan HD offers standardized form, reliable electrical characteristics and straightforward installation to keep motors and compressors operating as intended.
